Delta DP

Sophisticated DP Control System

Delta DP is a modular high-level propulsion control system that integrates vessel’s propulsion, steering and navigation systems. It provides three main controlling modes: Manual control, Dynamic Positioning mode and Autopilot mode. DP capabilities include dynamic positioning, virtual anchor, and 3-axis joystick propulsion force control.

In addition to DP features, Delta DP includes automatic heading keeping, track keeping and has an external waypoint autopilot interface capable of interfacing with NMEA2000 or NMEA0183 autopilot computer.

Downloads
Sigma Control System Handle
Sigma Control System Joystick

ISO

9001

ISO

14001

ISO

45001

Specifications

Propulsion types
Thrusters
Bow thrusters
Rudders
Vessel types
Workboats
Yachts
System architecture
  • Modular CAN bus connected system
  • Proprietary J1939 inspired CAN network

  • NMEA2000 interface for GPS and external autopilot

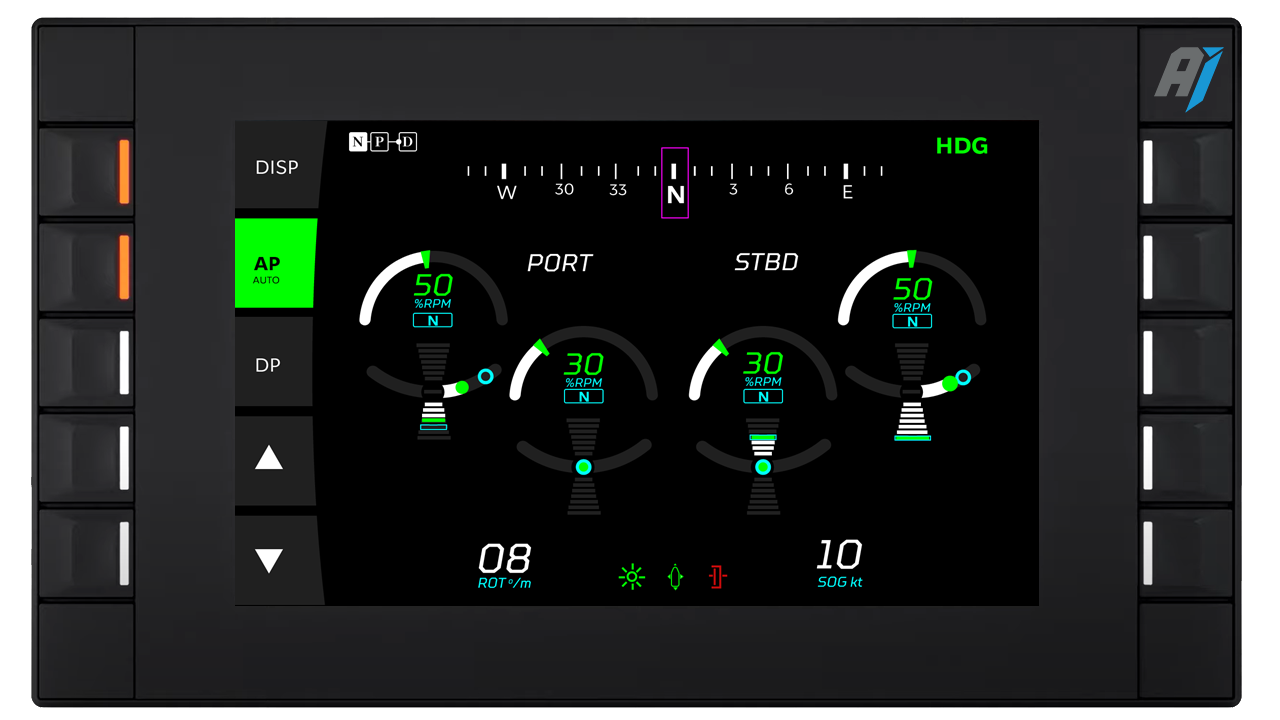

  • 5’’ Computing Display Unit

  • Robust real-time control module for each thruster

Control head options
  • Twin-levers option
  • 3-axis joystick
  • E-Helm
Bow thruster control options
  • Analog signal
  • PWM controlled proportional valves
Intelligent features
  • 3-axis joystick force control
  • Dynamic positioning
  • Virtual anchor
  • Heading autopilot
  • COG autopilot
  • Track following autopilot
Rudder control options
  • ”Bang bang” control
  • PWM control for proportional valves
Driveline control options
  • Optoisolated analog engine control
  • J1939 CAN engine control
  • Gearbox solenoid control

  • ZF ClearCommand DP-interface option
