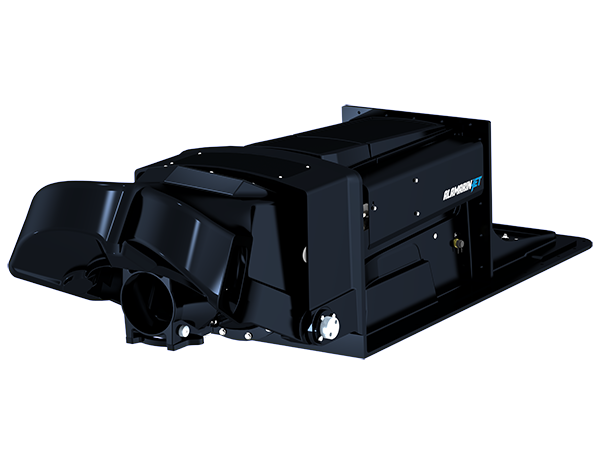

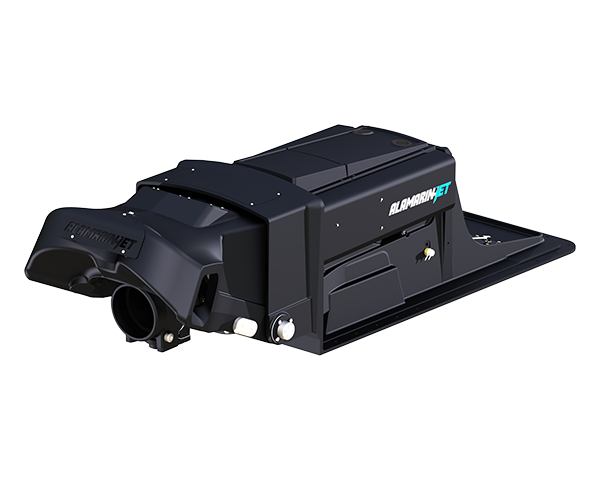

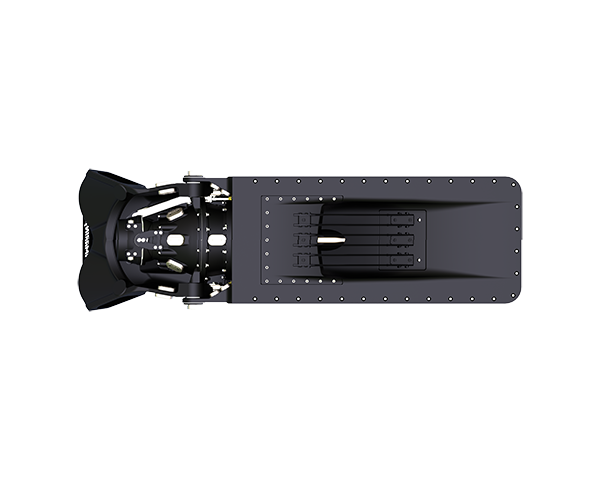

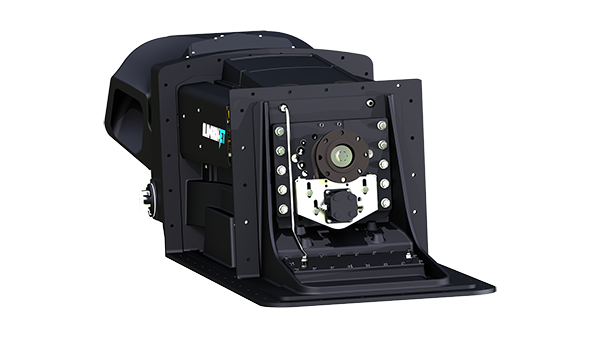

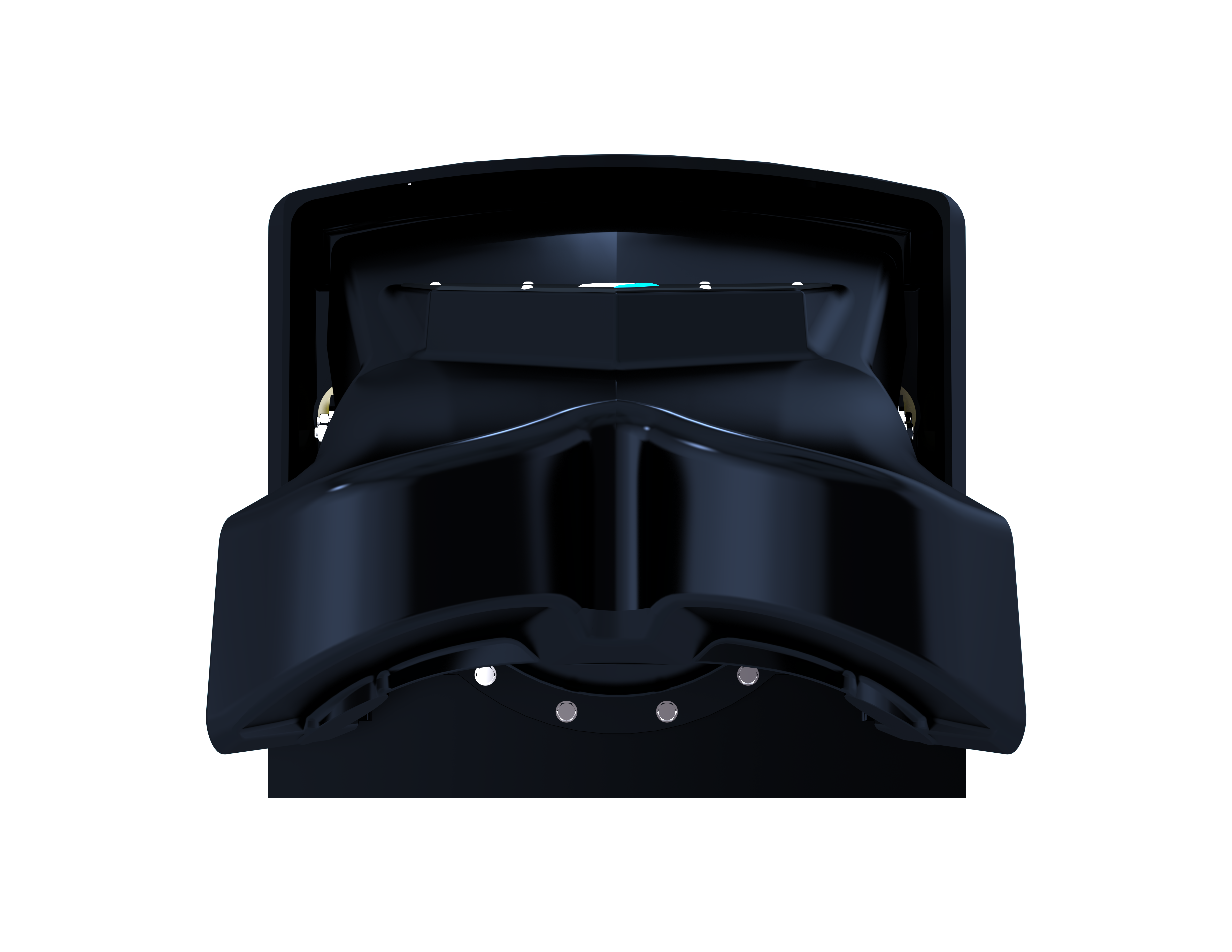

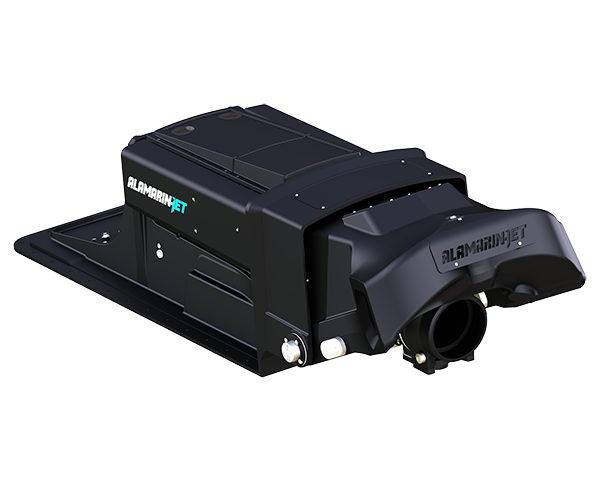

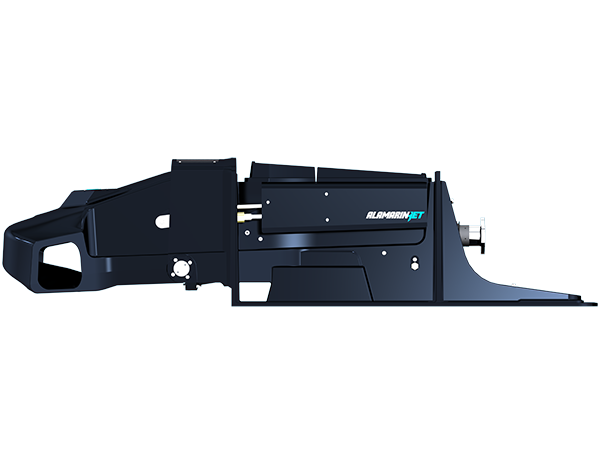

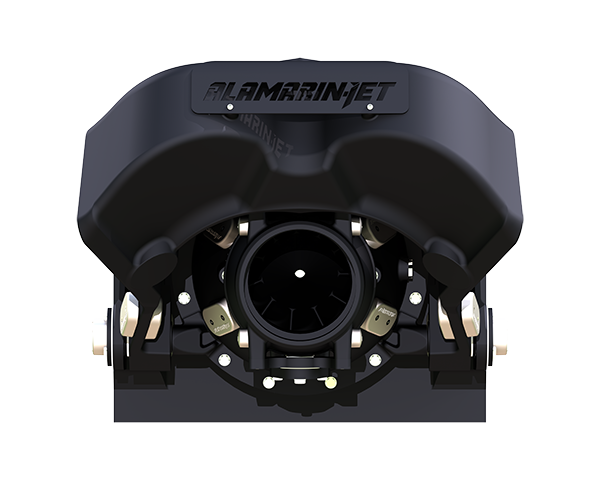

Omega 37 Waterjet

Omega 37 Waterjet

The Omega 37 is the second largest waterjet in Omega Series, with a max input power of 1360 HP and unique features such as:

  • Stainless Steel Pump Unit
  • Dual Angle Shaft (DAS)
  • Frame Integrated Bearing Structure (FIBS)
  • Modular Intake Geometry (MIG)
  • Structural bulkhead adapter

Omega Series epitomises Alamarin-Jets dedication to user-focused, highly efficient and innovative design.

The Alamarin-Jet mixed flow pump design is proven to outperform competitive products in comparable size range and above.

ISO

9001

ISO

14001

ISO

45001

Stainless Steel Pump Unit

Omega 37 is equipped with a stainless steel pump unit, which enables long service intervals and a long product life cycle.

Omega 42 Waterjet
Dimensions 0 degrees shaft angle 4 degrees shaft angle
A 774 mm / 30,47 in
 754 mm / 29,69 in
B 2834 mm / 111,56 in
 2840 mm / 111,81 in
C 780 mm / 30,71 in
 780 mm / 30,71 in
D 1210 mm / 47,64 in
 1207 mm / 47,52 in
E 990 mm / 38,98 in 990 mm / 38,98 in

Specifications

  • Pump type
    Mixed flow, Single stage

  • Materials
    Aluminium / Stainless Steel

  • Max impeller diameter
    max. 430mm / 16,9 in

  • Max impeller shaft RPM
    2550 1/min

  • Max input power
    1000 kW / 1360 HP

  • Dry weight
    750-770kg / 1,653-1,698lbs

  • Reverse deflector control
    Hydraulic / SIGMA Controls

Contact us for more information

If you want to learn more about this or our other models for your particular specifications and application, we are here to help you.
