Omega Series Waterjets

The Omega Series Waterjets showcase Alamarin-Jet’s dedication to user-focused, highly efficient and innovative design that has been proven to outperform competitive products in comparable size range and above.

Omega 42

Omega 42 Waterjet

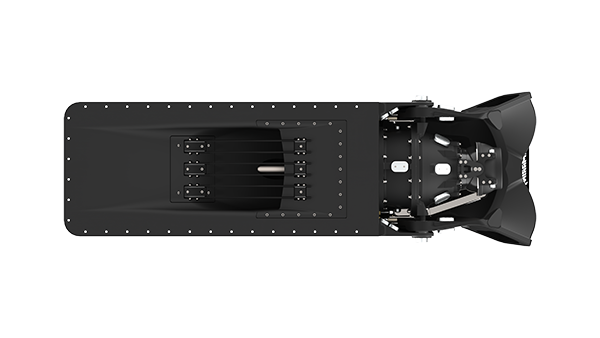

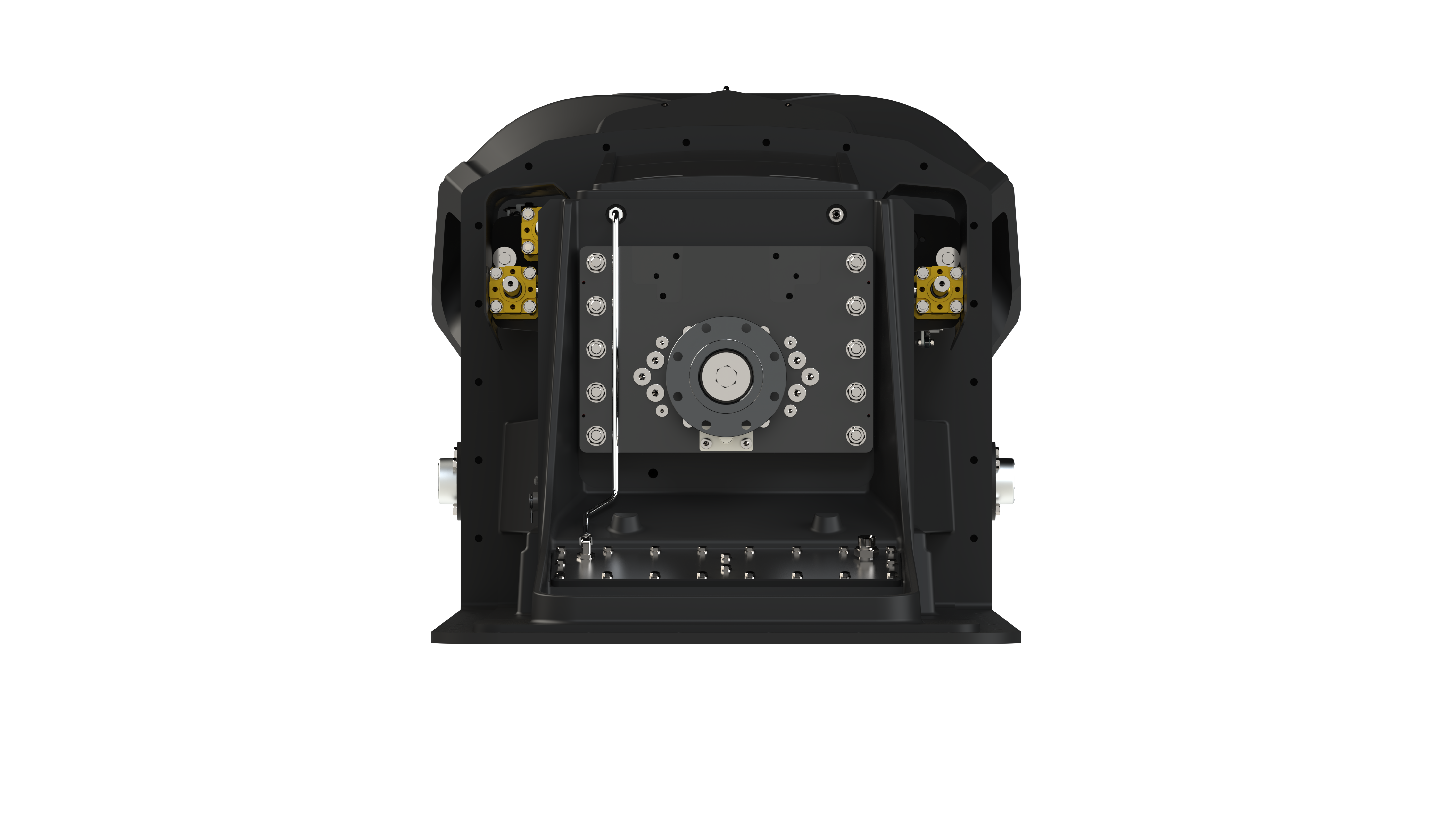

Alamarin-Jet Omega 42 Waterjet Propulsion System

Omega 42 has been extensively tested for thousands of operational hours in challenging offshore and nearshore conditions.

Dimensions
Alamarin-Jet Omega 42 Waterjet Propulsion System dimensions
Dimensions 0 degrees shaft angle 4 degrees shaft angle
A 858 mm / 33.79 in
 872 mm / 34.32 in
B 3170 mm / 124.80 in
 3171,5 mm / 124.86 in
C 850 mm / 33.46 in
 850 mm / 33.46 in
D 1332 mm / 52.44 in
 1329 mm / 52.31 in
Omega 37

Omega 37 Waterjet

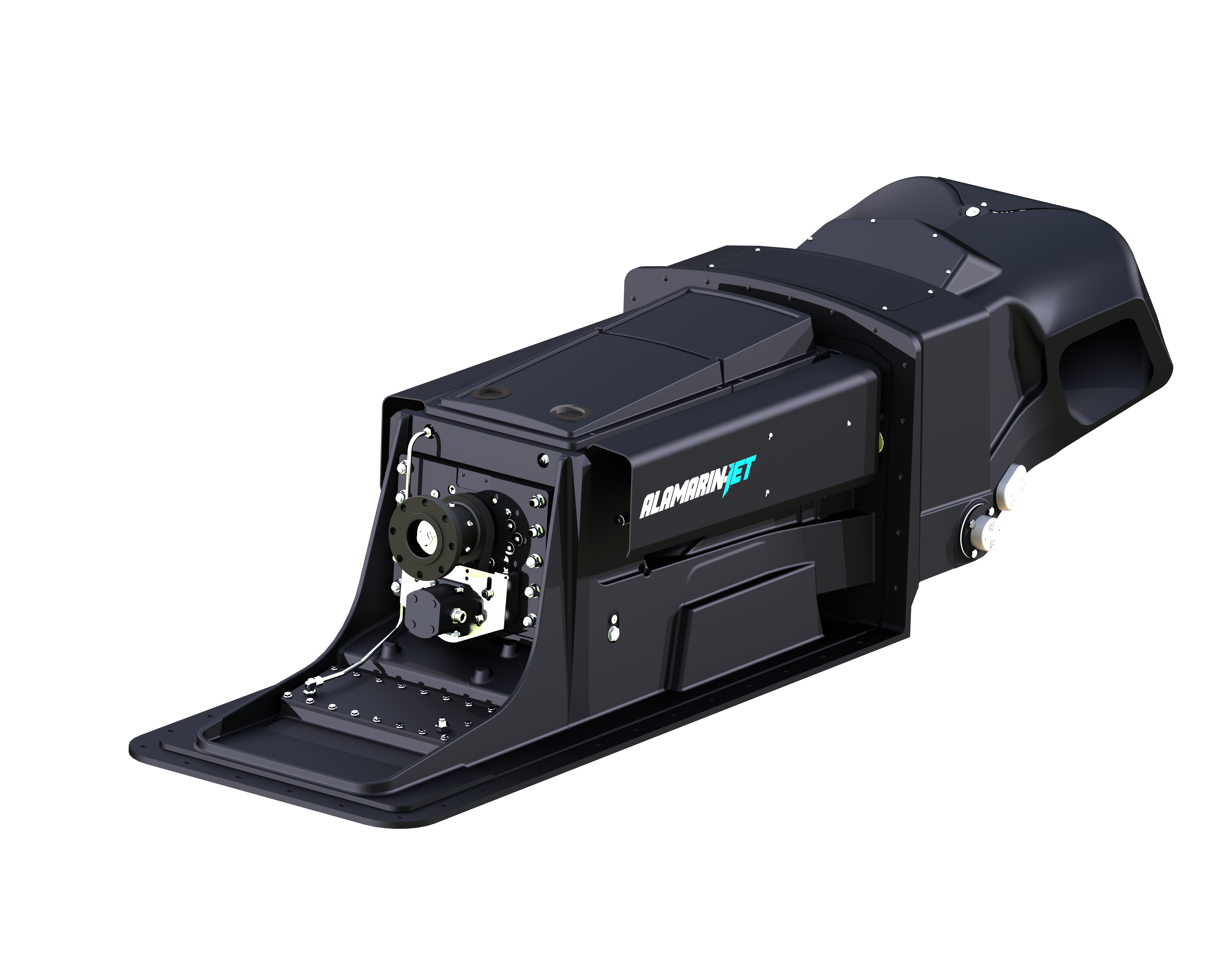

Alamarin-Jet Omega 37 Waterjet Propulsion System

Omega 37 is the second largest waterjet in Omega Series, with a max input power of 1360 HP and unique features.

Dimensions
Alamarin-Jet Omega 37 Waterjet Propulsion System dimensions
Dimensions 0 degrees shaft angle 4 degrees shaft angle
A 774 mm / 30.47 in
 754 mm / 29.69 in
B 2834 mm / 111.56 in
 2840 mm / 111.81 in
C 780 mm / 30.71 in
 780 mm / 30.71 in
D 1210 mm / 47.64 in
 1207 mm / 47.52 in
NEW! Omega 33

Omega 33 Waterjet

Alamarin-Jet Omega 33 Waterjet Propulsion System

Omega 33 stands out as the most advanced waterjet in its class due to its combination of high performance, smart integration, and durable, high-quality design.

Dimensions
Alamarin-Jet Omega 33 Waterjet Propulsion System dimensions
Dimensions Omega 33
A 640 mm / 25.2 in
B 2520 mm / 99.21 in
C 690 mm / 27.17 in
D 1076 mm / 42.38 in

Unique features found in Omega Series

Omega Series Waterjets include unique features such as:

  • Dual Angle Shaft (DAS)
  • Stainless Steel Pump Unit
  • Frame Integrated Bearing Structure (FIBS)
  • Modular Intake Geometry (MIG)
  • Structural bulkhead adapter
Alamarin-Jet Omega Series Waterjet Propulsion System

Patented Dual Angle Shaft

The patented Dual Angle Shaft recently introduced in the OMEGA SERIES waterjets which allows 2 different shaft angles without changing jet inclination

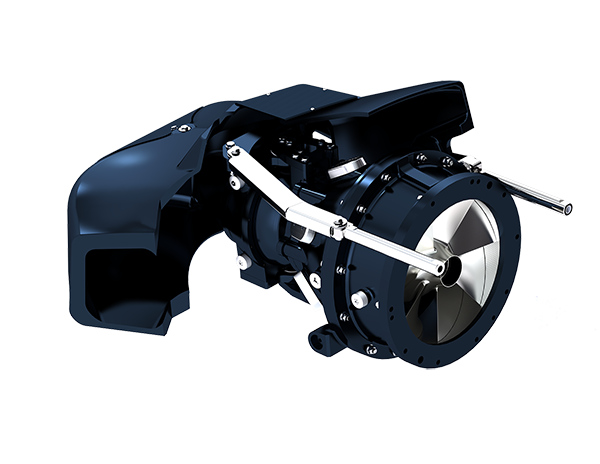

Stainless Steel Pump Unit

Omega Series is equipped with a stainless steel pump unit, which enables long service intervals and a long product life cycle.

Stainless steel pump unit

Modular Intake Geometry

Intake internal components can be changed to suit operational requirements
Modular intake geometry

Frame Integrated Bearing Structure

Frame integrated bearing structure
